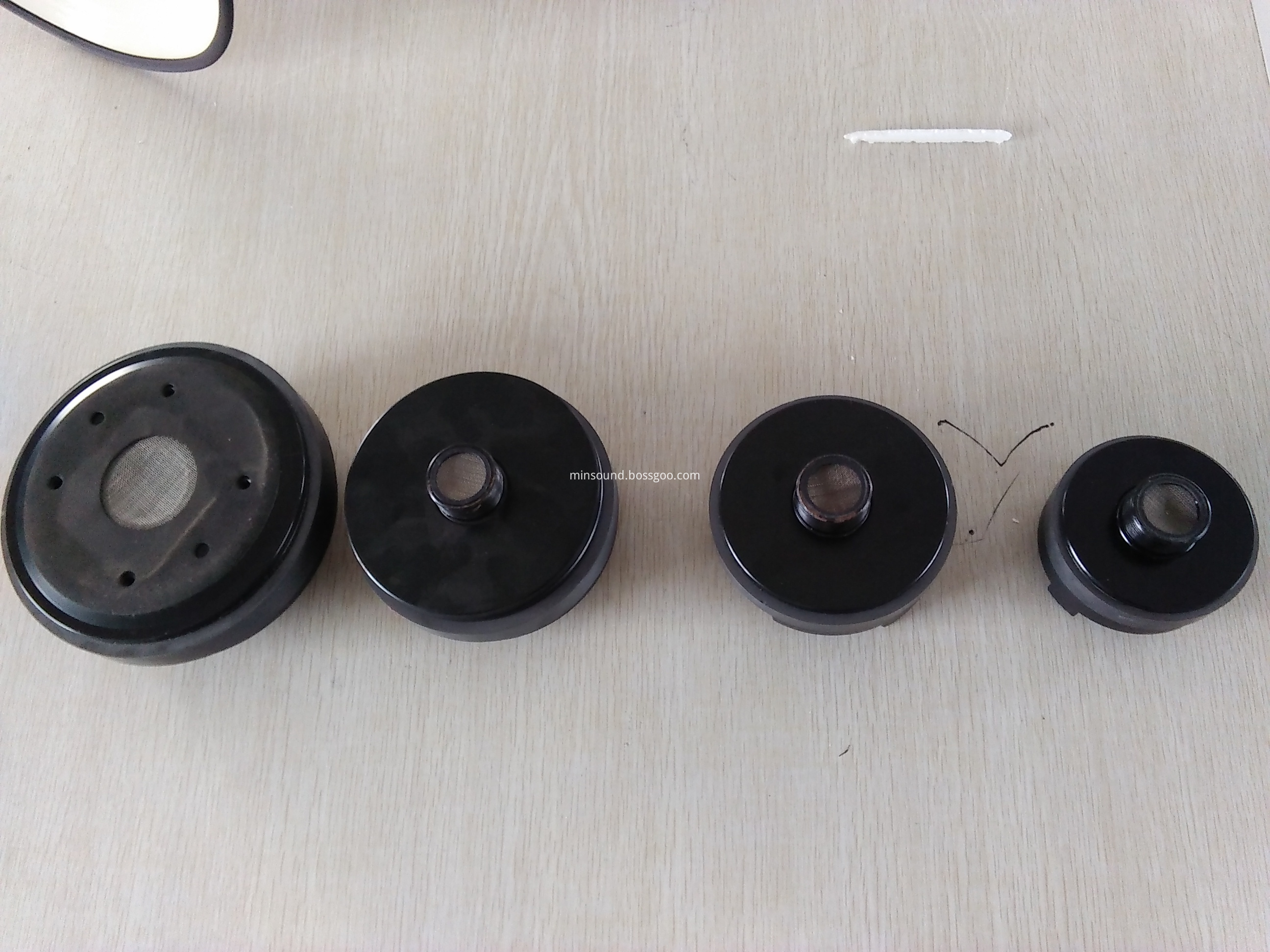

A compression driver is a small specialized diaphragm PA loudspeaker which generates the sound in a horn loudspeaker. It is attached to an acoustic horn, a widening duct which serves to radiate the sound efficiently into the air. It works in a "compression" mode; the area of the loudspeaker diaphragm is significantly larger than the throat aperture of the horn so that it provides high sound pressures. Horn-loaded compression drivers can achieve very high efficiencies, around 10 times the efficiency of direct-radiating cone loudspeakers. They are used as midrange and tweeter drivers in high power sound reinforcement loudspeakers, and in reflex or folded-horn loudspeakers in megaphones and public address systems.
In some sound reinforcement and studio monitors the high frequency drivers are protected by current sensing self-resetting circuit breakers. When too much power is dissipated by the driver, the circuit breaker interrupts the flow of electric current. The circuit breaker resets itself after a brief interval. An older circuit protection technique is a light bulb placed in series with the driver to act as a variable resistor. The resistance of the bulb filament is proportional to its temperature which increases as current flow through the filament increases. The net effect is that as the power increases the filament consumes an increasing share of the total power thus limiting the power available to the compression driver.
